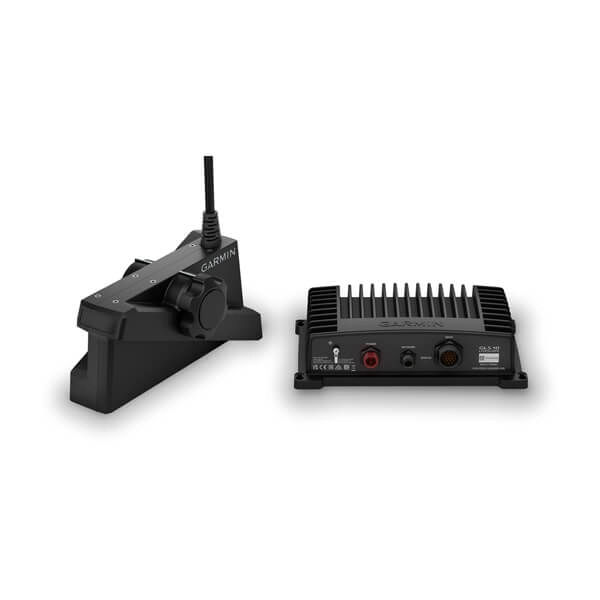

LiveScope™ Plus System, With GLS 10™ and LVS34 Transducer With GLS 10™ and LVS34 Transducer
AED 8,309.00
Description
General |
|
| Transducer beamwidth | 20° x 135° |
|---|---|
| TRANSDUCER CABLE LENGTH | 20 ft |
| TRANSDUCER PIN NUMBER | 21 |
| Dimension | GLS 10 sonar black box: 24.5 x 14.9 x 6.5 cm; LVS32 transducer: 13.7 x 9.7 x 4.6 cm |
| WEIGHT | GLS 10 sonar black box: 2.0 kg; LVS32 transducer: 0.9 kg |
| Water rating | IPX7 |
| Temperature range | GLS 10 Black Box: Operating: -15 C to 70 C Panoptix LiveScope LVS32 Transducer: Operating: 0 C to 40 C |
Electrical Features |
|
| POWER INPUT | 10-32 V |
|---|---|
| Power usage | 21 W typical, 58 W max |
| FUSE | 7.5 A |
| Compass safe distance | 4″ (0.1 m) |
Sonar features & specifications |
|
| Frequency | 530 – 1,100 kHz |
|---|---|
| Transmit power | 500 W |
| MAXIMUM DEPTH | Down and Forward: 61.0 m |
| Sonar Type | Live |
| Target Separation @100′ | 14″ |
| Perspective Mode Mount Included | |
Connections |
|
| Garmin Marine Network Ports | 1 (small connector) |
|---|---|
Security Information |
|
| Security updates until at least (YYYY-MM-DD) | 2024-07-12 |
|---|---|
