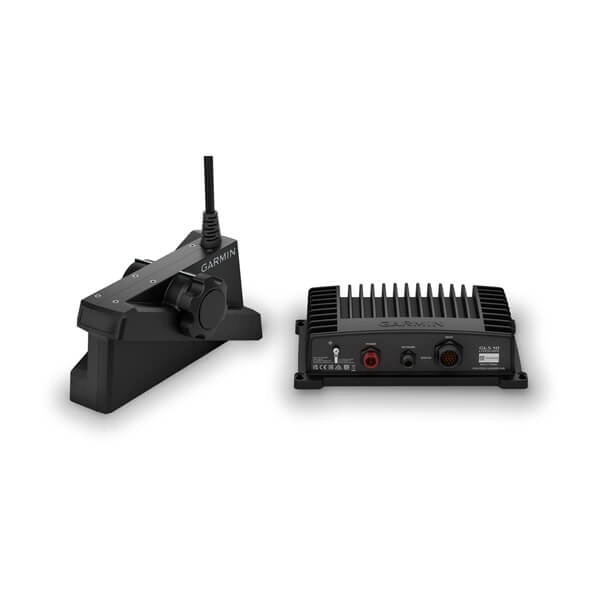

LiveScope™ XR System
AED 12,079.00
Description
General |
|
| Transducer beamwidth | 20° x 135° |
|---|---|
| Transducer cable length | 20 ft |
| TRANSDUCER PIN NUMBER | 21 |
| WEIGHT | GLS 10 sonar black box: 4.3 lbs (2.0 kg) LVS62 transducer with cable: 3.92 lbs (1.78 kg) LVS62 transducer without cable: 2.66 lbs (1.21 kg) |
| WATER RATING | IPX7 |
| Temperature range | LVS62 Transducer: Operating: 0 C to 40 C |
Electrical Features |
|
| POWER INPUT | 10-32 V |
|---|---|
| Power Usage | 21 W typical, 58 W max |
| FUSE | 7.5 A |
| Compass safe distance | 7″ (0.18 m) |
Sonar features & specifications |
|
| FREQUENCY RESPONCE | 282 – 522 kHz |
|---|---|
| TRANSMIT POWER | 500 W |
| MAXIMUM DEPTH | Freshwater: Down and Forward: 500’ (152.0 m) Saltwater: Down and Forward: 350’ (106.0 m) |
| Sonar Type | Live |
| Target Separation @100′ | 22″ |
| Perspective Mode Mount Included | |
Connections |
|
| GARMIN MARINE NETWORK PORTS | 1 (small connector) |
|---|---|
Security Information |
|
| SECURITY UPDATES UNTIL AT LEAST (YYYY-MM-DD) | 2024-07-12 |
|---|---|
