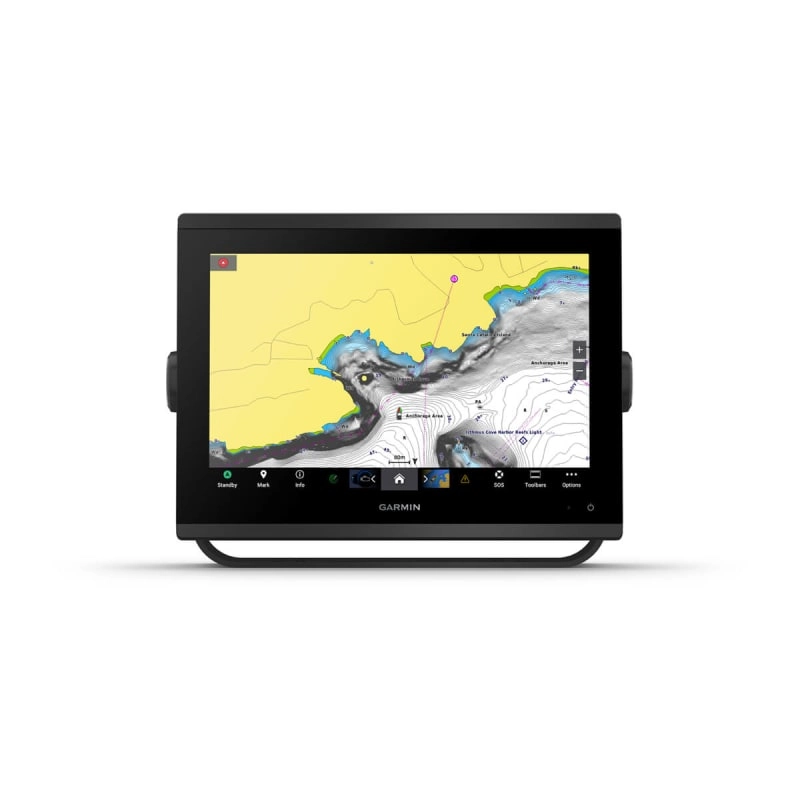

GPSMAP® 1223xsv SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
AED 9,459.00
Description
General |
|
| DIMENSION | 12.1″ x 8.9″ x 3.2″ (30.8 x 22.8 x 8.2 cm) |
|---|---|
| WEIGHT | 6.6 lbs. (3.0 kg) |
| WATER RATING | IPX7 |
| TOUCHSCREEN | ✔ |
| DISPLAY TYPE | WXGA display |
| DISPLAYS SONAR | 10.3″ x 6.4″; 12.1″ diagonal (26.2 x 16.3 cm; 30.7 cm diagonal) |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| MOUNTING OPTIONS | Bail or flush |
| Sensitivity (1 watt @ 1 metre) | Touchscreen |
Maps & memory |
|
| ACCEPTS DATA CARDS | 2 microSD™ cards (back of unit) |
|---|---|
| WAYPOINTS | 5,000 |
| TRACK POINTS | 50,000 |
| Tracks | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sources |
|
| GPS | ✔ |
|---|---|
| GLONASS | ✔ |
| GALILEO | ✔ |
| HAS BUILT-IN RECEIVER | ✔ |
| Receiver | 10 Hz high-sensitivity |
| NMEA 2000® compatible | ✔ |
| NMEA 0183 Compatible | ✔ |
| SUPPORTS WAAS | ✔ |
Built-in maps |
|
| BUILT-IN AUTO GUIDANCE+ | ✔ |
|---|---|
| BLUECHART(COASTAL) | ✔ |
| LAKEVU (INLAND) | ✔ |
| TIDE TABLES | ✔ |
Optional map support |
|
| BLUECHART G3 | ✔ |
|---|---|
| BLUECHART G3 VISION | ✔ |
| LAKEVÜ G3 | ✔ |
| LAKEVÜ G3 ULTRA | ✔ |
| GARMIN NAVIONICS+™ | ✔ |
| GARMIN NAVIONICS VISION+™ | ✔ |
| TOPO 100K | ✔ |
| STANDARD MAPPING | ✔ |
| GARMIN QUICKDRAW CONTOURS | ✔ |
| Raster chart support | ✔ |
Chartplotter Features |
|
| Garmin SmartMode compatible (customisable monitor presets) | ✔ |
|---|---|
| AIS | ✔ |
| DSC | ✔ |
| FUSION-LINK™ CONTROL | ✔ |
| GSD Black Box Sonar Support | ✔ |
| GCV™ BLACK BOX SONAR SUPPORT | ✔ |
| ACTIVECAPTAIN® COMPATIBLE | |
| GRID (Garmin Remote Input Device) compatible | ✔ |
| WIRELESS REMOTE | ✔ |
| SAILING FEATURES | ✔ |
| Spoken audio alerts | ✔ |
| OneHelm support | ✔ |
Electrical Features |
|
| POWER INPUT | 10 to 32 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 1.68 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 3.56 A |
| MAXIMIUM POWER USAGE AT 10 VDC | 43.0W |
Sonar features & specifications |
|
| SONAR RECORDING | ✔ |
|---|---|
| POWER OUTPUT | 1 kW |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | Built-in 260/455/800/1000/1200 kHz |
| SIDEVÜ | Built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | ✔ |
| LIVESCOPE | ✔ |
Connections |
|
| NMEA 2000® PORTS | 1 |
|---|---|
| NMEA 0183 INPUT PORTS | 1 |
| NMEA 0183 OUTPUT PORTS | 1 |
| Video input ports | 1 BNC |
| Video output ports | 1 HDMI |
| J1939 ports | 1 |
| GARMIN MARINE NETWORK PORTS | 2 |
| 12-PIN TRANSDUCER PORTS | 1 |
| USB 2.0 | ✔ |
| Bluetooth® calling | ✔ |
| ANT+ (CONNECTIVITY) | ✔ |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | ✔ |
Security Information |
|
| SECURITY UPDATES UNTIL AT LEAST (YYYY-MM-DD) | 2022-10-27 |
|---|---|
