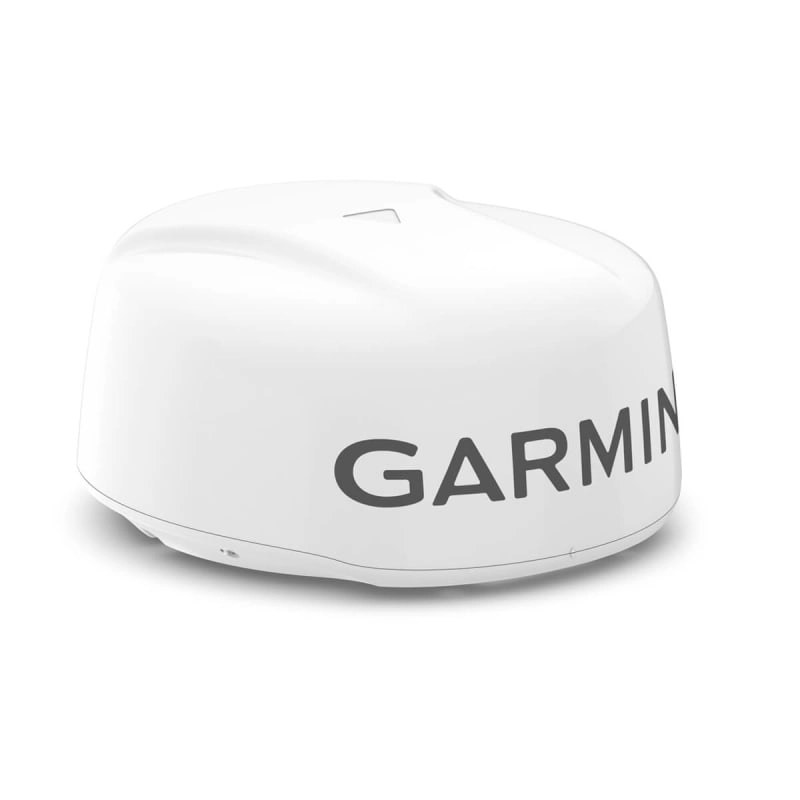

GMR Fantom™ 18x/24x Dome Radar Radome, White
AED 9,285.00
General |
|
| DIMENSION | 18x: 20″ x 9.80″ (50.80 x 24.90 cm) 24x: 25.40″ x 9.80″ (64.50 cm x 24.90 cm) |
|---|---|
| WEIGHT | 18x: 14.0 lbs 24x: 17.40 lbs |
| WATER RATING | IPX7 |
| ANTENNA LENGTH | 18x: 17″ (43.18 cm) 24x: 23″ (58.42 cm) |
| ROTATION SPEED(RPM) | Up to 60 rpm, depending on settings |
| Beam width | 18x: 5.20° horizontal, 25° vertical 24x: 3.70° horizontal, 25° vertical |
| Maximum range | 48 NM |
| Minimum range | 6 metres |
| Radar type | Radome |
Electrical Features |
|
| POWER INPUT | 10-32 V DC |
|---|---|
| Power Consumption (standby) | 4 W |
| Max power consumption, transmitting (power save) | 24 W |
| Max power consumption, transmitting (normal mode) | 33 W |
| Transmit power | 50 W |
Description
General |
|
| DIMENSION | 18x: 20″ x 9.80″ (50.80 x 24.90 cm) 24x: 25.40″ x 9.80″ (64.50 cm x 24.90 cm) |
|---|---|
| WEIGHT | 18x: 14.0 lbs 24x: 17.40 lbs |
| WATER RATING | IPX7 |
| ANTENNA LENGTH | 18x: 17″ (43.18 cm) 24x: 23″ (58.42 cm) |
| ROTATION SPEED(RPM) | Up to 60 rpm, depending on settings |
| Beam width | 18x: 5.20° horizontal, 25° vertical 24x: 3.70° horizontal, 25° vertical |
| Maximum range | 48 NM |
| Minimum range | 6 metres |
| Radar type | Radome |
Electrical Features |
|
| POWER INPUT | 10-32 V DC |
|---|---|
| Power Consumption (standby) | 4 W |
| Max power consumption, transmitting (power save) | 24 W |
| Max power consumption, transmitting (normal mode) | 33 W |
| Transmit power | 50 W |
