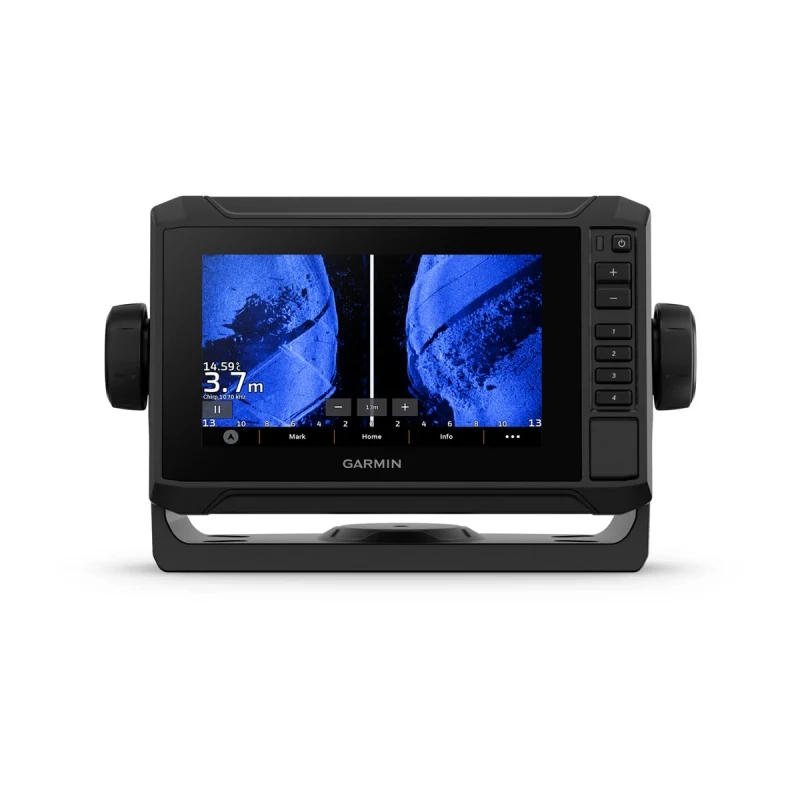

ECHOMAP™UHD2 7" Chartplotters
AED 4,159.00
ECHOMAP™ UHD2 6″ Chartplotters
AED 3,409.00
Description
General |
|
| TOUCHSCREEN | |
|---|---|
| INPUT | Touchscreen with Keyed Assist |
Maps & memory |
|
| ACCEPTS DATA CARDS | 1 microSD™ card; 32 GB maximum size |
|---|---|
| WAYPOINTS | 5,000 |
| TRACK POINTS | 50,000 |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| HAS BUILT-IN RECEIVER | |
|---|---|
| RECEIVER | 10 Hz |
| NMEA 2000 COMPATIBLE | |
| GPS | |
| GLONASS | |
| GALILEO | |
| BEIDOU | |
| SUPPORTS WAAS | |
| SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS | |
Built-in maps |
|
| BUILT-IN AUTO GUIDANCE+ | yes (downloadable via ActiveCaptain app) |
|---|---|
| GARMIN NAVIONICS+ INLAND & COASTAL | yes (see Additional) |
| GARMIN NAVIONICS+ (COASTAL) | yes (see Additional) |
| GARMIN NAVIONICS+ (INLAND) | yes (see Additional) |
| TIDE TABLES | yes (see Additional) |
Optional map support |
|
| GARMIN NAVIONICS+™ | |
|---|---|
| GARMIN NAVIONICS VISION+™ | |
| TOPO | |
| STANDARD MAPPING | |
| GARMIN QUICKDRAW CONTOURS | |
Chartplotter Features |
|
| AIS | |
|---|---|
| DSC | |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | |
| ACTIVECAPTAIN® COMPATIBLE | |
| SAILING FEATURES | |
Sonar features & specifications |
|
| DISPLAYS SONAR | |
|---|---|
| POWER OUTPUT | 500 W |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | built-in 260/455/800/1000/1200 kHz |
| SIDEVÜ | built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | |
| LIVESCOPE | |
Connections |
|
| NMEA 2000 PORTS | |
|---|---|
| GARMIN MARINE NETWORK PORTS | 1 |
| 12-PIN TRANSDUCER PORTS | 1 |
| BLUETOOTH® PAIRING | |
| ANT+ (CONNECTIVITY) | |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | |
Electrical Features |
|
| POWER INPUT | 9 to 18 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 1.53 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 3.2 A |
| MAXIMUM POWER USAGE AT 10 VDC | 18.4W |
Additional |
|
| ADDITIONAL | Garmin Navionics+ (inland and coastal): 65sv Canada, Australia and New Zealand Garmin Navionics+ (coastal): 64sv U.S. coastal, 65sv UK/Ireland Garmin Navionics+ (inland): 63sv U.S. lakes Tide tables: 63sv, 64sv, 65sv |
|---|---|
