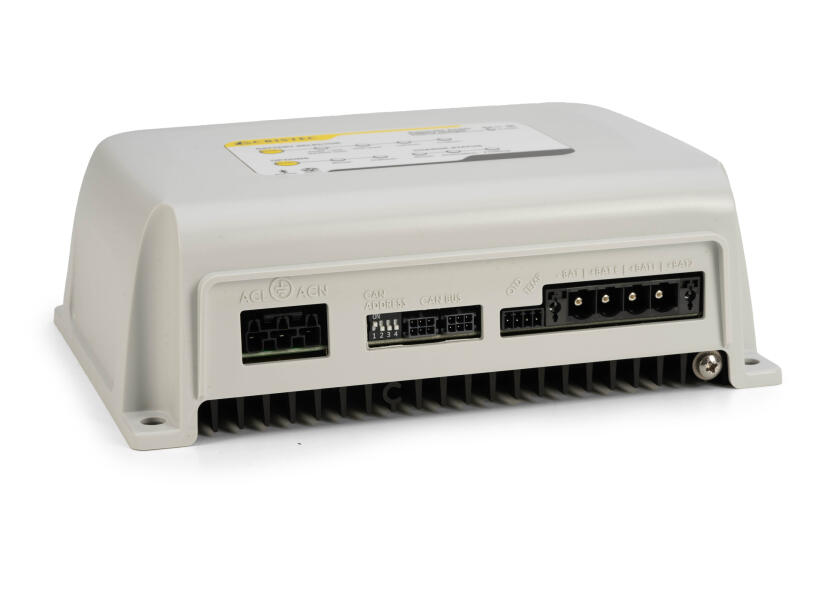

CRISTEC YPOWER+ Battery Charger 12 V / 30 A / 3 charging outputs / fanless
AED 1,775.25
Product details
CRISTEC YPOWER+
12V 30A charger / fanless
Perfect as replacement units for JAENNEAU, BENETEAU, WAUQUIEZ, LAGOON and other yachts.
YPOWER+ devices are perfect as replacement units for existing CRISTEC chargers on JAENNEAU, BENETEAU, WAUQUIEZ, LAGOON and other boats, as they are compatible with installed display devices such as the SCHEIBER NAVICOLOR thanks to the CAN BUS interface.
With more than 150,000 battery chargers in use around the world, CRISTEC is one of the world’s most reliable manufacturers in the field of battery charging technology. With the YPOWER+ line, CRISTEC introduces the fifth generation of chargers to the market. Manufacturing in France ensures consistent high quality workmanship and reflects the reliability and performance of CRISTEC products.
The YPOWER+ chargers feature an impressive, robust construction and offer a high level of reliability and efficiency. Specially designed for rough maritime use, CRISTEC devices are used on recreational boats, yachts, commercial vessels and in industry.
CRISTEC YPOWER+ chargers can deliver their full power at temperatures of up to 60°C. These chargers can thus be installed in extremely hot environments, such as an engine compartment.
Features
Silent operation
CRISTEC is one of the few manufacturers to offer fanless chargers with an output of up to 60A at 12V and 20A at 24V. No fans results in silent operation and increased service life of the charger. This means you can even install units in the bunk, without disturbing your sleep.
Thermal performance
CRISTEC chargers deliver full power, even at temperatures of up to +60°C. They can thus be installed in extremely hot environments, such as an engine compartment. Das CRISTEC YPOWER+ 12V/30A ist Zündgeschützt nach SAE J1171 und ISO8846 und ideal für den Motorraum geeignet.
Easy to install
Quick & reliable electrical connection thanks to the supplied plug connectors. Delivery includes a WAGO WINSTA 770-103 connector for AC connection and a Phoenix Contact connector for DC connection. Detailed operating instructions guide you step by step through the connection process.
Highly versatile
The five-stage charging characteristic charges and maintains lead acid, GEL, AGM and lithium ion phosphate (LiFePO4) safely and efficiently with integrated BMS. Thanks to the large AC operating range of 90 V – 265 V, the charger can be used worldwide and is therefore particularly popular with round the world sailors.
Technical Data
| Battery voltage: | 12V DC |
| Charging current: | 30 A |
| Mains AC voltage: | 90 – 265 VAC |
| Power consumption: | 2 A @ 230 VAC / 4 A @ 115 VAC |
| Output: | 356 W |
| Recommended battery capacity: | 200 – 300 Ah |
| Exchangeable AC fuses: | T6,3A (250 V) 6,3×32 (F101) |
| Charging outputs: | 3 (one output for charging the starter battery) |
| Charging curves: | IU or IUoU (adjustable via DIP switch) |
| Supported battery types: | Lead acid, GEL, AGM, LiFePO4 |
| Ambient temperature: | -20°C to +60°C (at 230 VAC) |
| Dimensions: | 238 x 181 x 81 mm |
| Weight: | 2 kg |
| Recommended mounting screws: | M5 round head (4x) |
| Waterproof: | IP22 |
