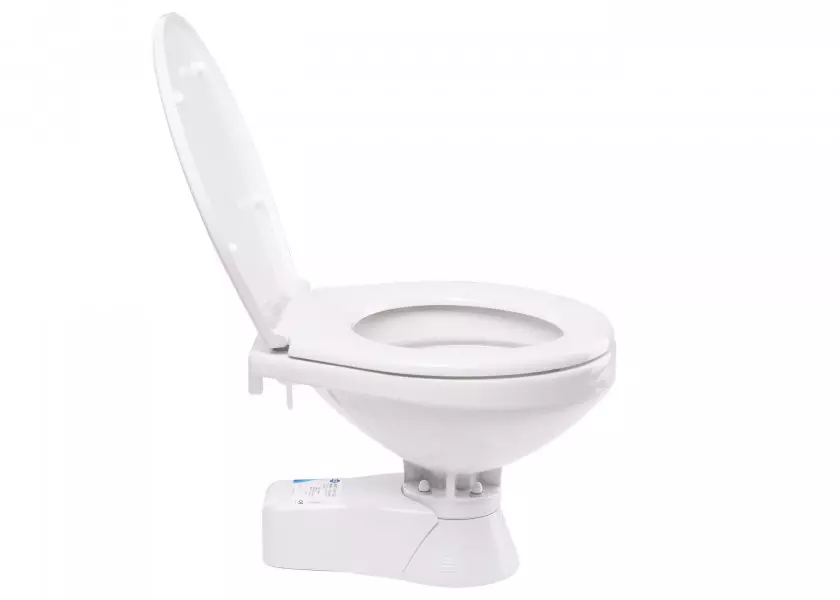

JABSCO Board Toilet QUIET FLUSH / Comfort / Seawater Pump / /24 V / Soft-close Lid

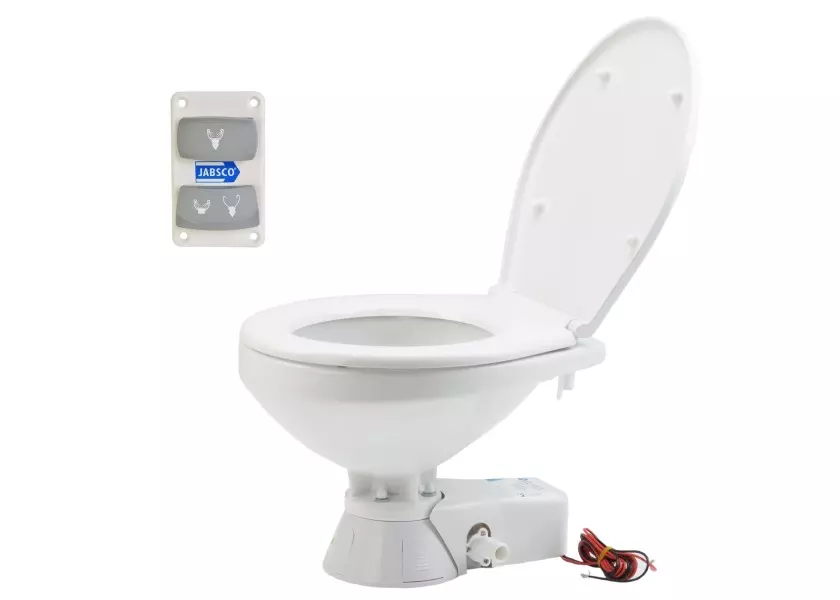

The QUIET FLUSH toilet is notable for its noiseless operation and features the option of regulating the level of flushing water in the toilet bowl. The flushing process is started by a single large pushbutton that simultaneously activates the flushing water supply and the chopper discharge pump. An additional rocker switch enables separate control of the flushing water supply and the discharge pump, which means that the flushing water level in the tank can easily be increased or decreased. Depending on the user’s requirements, this allows for more economical water consumption or, if necessary for reasons of user comfort, an increase in the flushing water level in the basin. This design also allows the basin to be emptied completely in heavy seas. As well as the large comfort bowl, the toilet also has a soft close lid.

The QUIET FLUSH toilet is supplied with a PAR-MAX pump, which is used to pump seawater for flushing the toilet. In order to make sure that the pump can work effectively, the distance to the toilet should be kept as short as possible. Since the pump is self-priming, it may be placed above the waterline of the boat. When installing, the Pumpguard strainer supplied with the toilet must be fitted in the inlet line to the pump. An easily accessible bulkhead wall is a suitable installation location for multi-function flushing of the toilet.

Connections	Inlet: 19 mm (3/4″) Outlet: 25 mm (1″)
Motor & Switch	Comply with USCG 183.410 and ISO8846 MARINE for protection against ignition
Water consumption	1-2 liters per flush
Material	Thermoset plastic
Weight:	17.30 kg
Dimensions	365 x 375 x 480 mm
