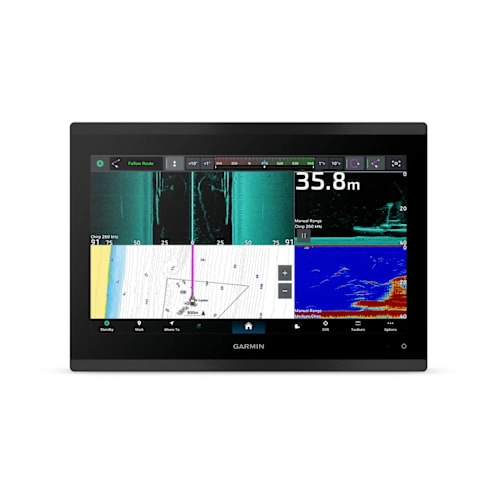

GPSMAP® 9017xsv Premium chartplotter with worldwide basemap and sonar
AED 30,579.00
Description
General |
|
| DIMENSION | 42.7 cm x 28.5 cm x 9.2 cm (16.80″ x 11.23″ x 3.60″) |
|---|---|
| WEIGHT | 5.90 kg (13 lbs) |
| WEIGHT SHIFT ALERT | IPX7 |
| TOUCHSCREEN | ✔ |
| DISPLAY TYPE | 4K, IPS; Mini LED (Local Dimming) backlight |
| DISPLAY SIZE | 38.2 cm x 21.5 cm x 43.8 cm diagonal (15.04″ x 8.50″ x 17.25″ diagonal) |
| DISPLAY RESOLUTION | 3,840 x 2,160 pixels |
| MOUNTING OPTIONS | Flat or flush |
| INPUT | Touchscreen |
| Polarised Lens Viewability | |
Maps & memory |
|
| ACCEPTS DATA CARDS | 2 microSD™ cards (on rear of product) |
|---|---|
| Supports USB card reader | |
| WAYPOINTS | 5,000 |
| TRACK POINTS | 50,000 |
| Tracks | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sources |
|
| GPS | |
|---|---|
| GLONASS | |
| GALILEO | |
| BEIDOU | |
| HAS BUILT-IN RECEIVER | |
| RECEIVER | 10 Hz |
| NMEA 2000® compatible | |
| NMEA 0183 Compatible | |
| SUPPORTS WAAS | |
| SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS | |
Optional map support |
|
| BLUECHART G3 | |
|---|---|
| BLUECHART G3 VISION | |
| LAKEVÜ G3 | |
| LAKEVÜ G3 ULTRA | |
| GARMIN NAVIONICS+™ | |
| GARMIN NAVIONICS VISION+™ | |
| TOPO 100K | |
| STANDARD MAPPING | |
| GARMIN QUICKDRAW CONTOURS | |
| Raster chart support | |
Chartplotter Features |
|
| Garmin SmartMode compatible (customisable monitor presets) | |
|---|---|
| AIS | |
| DSC | |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | |
| GCV™ BLACK BOX SONAR SUPPORT | |
| ActiveCaptain Mobile Planning Compatible | |
| Supports Voice Commands | |
| GRID (Garmin Remote Input Device) compatible | |
| GRID 20 compatible | |
| Wireless Remote Compatible | |
| SAILING FEATURES | |
| Spoken audio alerts | |
| OneHelm support | |
Electrical Features |
|
| POWER INPUT | 10 to 32 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 5.44 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 6.3 A |
| MAXIMUM POWER USAGE AT 10 VDC | 68 W |
Sonar features & specifications |
|
| DISPLAYS SONAR | |
|---|---|
| POWER OUTPUT | 1 kW |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | Yes (dual 1 kW) |
| Supports built-in xCHIRP | |
| Supports built-in RapidReturn | Yes (up to 2x) |
| CLEARVÜ | Yes (with compatible black box sonar) |
| SIDEVÜ | Yes (with compatible black box sonar) |
| PANOPTIX™ SONAR | |
| LIVESCOPE | |
Connections |
|
| NMEA 2000® PORTS | 1 |
|---|---|
| NMEA 0183 Input (Rx) Ports | 1 |
| NMEA 0183 output (Tx) ports | 1 |
| Video input ports | 1 (BNC composite); 1 HDMI (HDCP compliant) |
| Video output ports | 1 HDMI |
| J1939 ports | 1 |
| Garmin BlueNet network ports | 2 |
| USB ports | Yes (1x USB-C) |
| Bluetooth® calling | |
| ANT® (Connectivity) | |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | |
| Wi-Fi frequency bands | 2.4 GHz & 5 GHz |
| Audio output | |
Security Information |
|
| SECURITY UPDATES UNTIL AT LEAST (YYYY-MM-DD) | 2027-10-28 |
|---|---|
