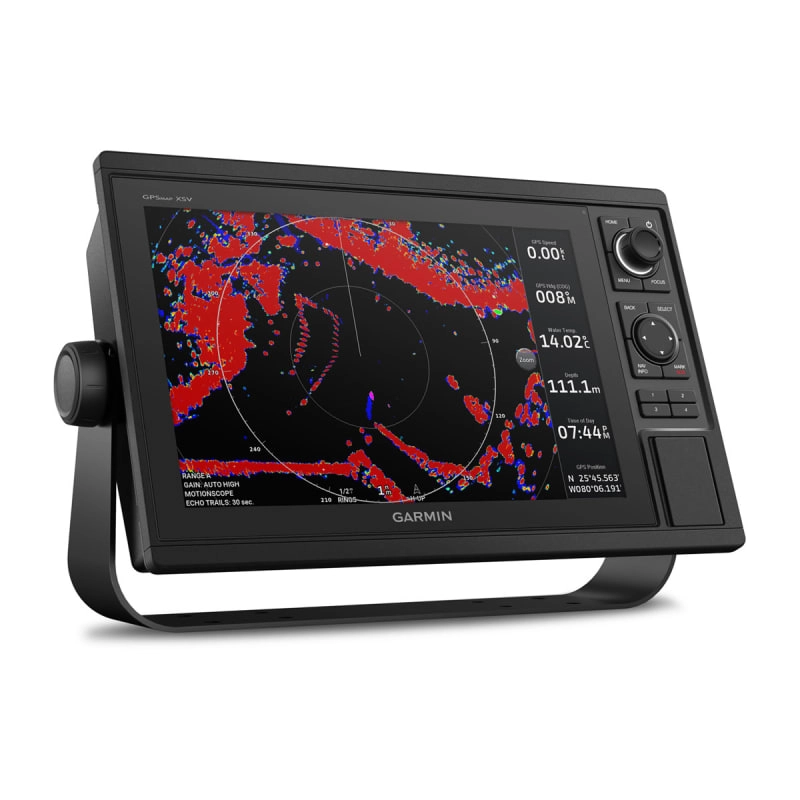

GPSMAP® 1222 GPSMAP® 1222 – Worldwide Basemap
AED 9,329.00
Description
General |
|
| DIMENSION | 35.8 x 22.6 x 6.9 cm |
|---|---|
| WEIGHT | 2.34 kg |
| WATER RATING | IPX7 |
| TOUCHSCREEN | ✔ |
| DISPLAY TYPE | WSVGA display |
| DISPLAYS SONAR | 26.2 x 16.3 cm; 12.1″ (30.7 cm) diagonal |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| MOUNTING OPTIONS | Bail or flush |
| Sensitivity (1 watt @ 1 metre) | Keyed |
Maps & memory |
|
| ACCEPTS DATA CARDS | 2 SD Cards (with Garmin SD card reader accesory) |
|---|---|
| PROJECTED WAYPOINT | 5,000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 (250 waypoints each) |
Sources |
|
| GPS | |
|---|---|
| GLONASS | |
| HAS BUILT-IN RECEIVER | |
| Receiver | 10 Hz high-sensitivity |
| NMEA 2000® compatible | ✔ |
| NMEA 0183 Compatible | ✔ |
| SUPPORTS WAAS | |
Built-in maps |
|
| TIDE TABLES | ✔ |
|---|---|
Optional map support |
|
| BLUECHART G3 | ✔ |
|---|---|
| BLUECHART G3 VISION | ✔ |
| LAKEVÜ G3 | ✔ |
| LAKEVÜ G3 ULTRA | ✔ |
| GARMIN NAVIONICS+™ | ✔ |
| GARMIN NAVIONICS VISION+™ | ✔ |
| TOPO 100K | ✔ |
| STANDARD MAPPING | ✔ |
| GARMIN QUICKDRAW CONTOURS | ✔ |
| Raster chart support | ✔ |
Chartplotter Features |
|
| Garmin SmartMode compatible (customisable monitor presets) | ✔ |
|---|---|
| AIS | ✔ |
| DSC | ✔ |
| FUSION-LINK™ CONTROL | ✔ |
| GSD Black Box Sonar Support | ✔ |
| GCV™ BLACK BOX SONAR SUPPORT | ✔ |
| ACTIVECAPTAIN® COMPATIBLE | ✔ |
| GRID (Garmin Remote Input Device) compatible | ✔ |
| WIRELESS REMOTE | ✔ |
| SAILING FEATURES | ✔ |
Electrical Features |
|
| Power Input | 10 to 32 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 1.9 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 2.7 A |
| MAXIMIUM POWER USAGE AT 10 VDC | 32.4W |
Sonar features & specifications |
|
| SONAR RECORDING | ✔ |
|---|---|
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | Yes (with GCV™ black box, sold separately) |
| CLEARVÜ | Yes (with GCV™ black box, sold separately) |
| SIDEVÜ | Yes (with compatible black box sonar) |
| PANOPTIX™ SONAR | ✔ |
| LIVESCOPE | ✔ |
Connections |
|
| NMEA 2000® PORTS | 1 |
|---|---|
| NMEA 0183 INPUT PORTS | 1 |
| NMEA 0183 OUTPUT PORTS | 1 |
| Video input ports | 1 BNC |
| Video output ports | None |
| GARMIN MARINE NETWORK PORTS | 2 |
| Bluetooth® calling | ✔ |
| ANT+ (CONNECTIVITY) | ✔ |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | ✔ |
Security Information |
|
| SECURITY UPDATES UNTIL AT LEAST (YYYY-MM-DD) | 2018-11-02 |
|---|---|
